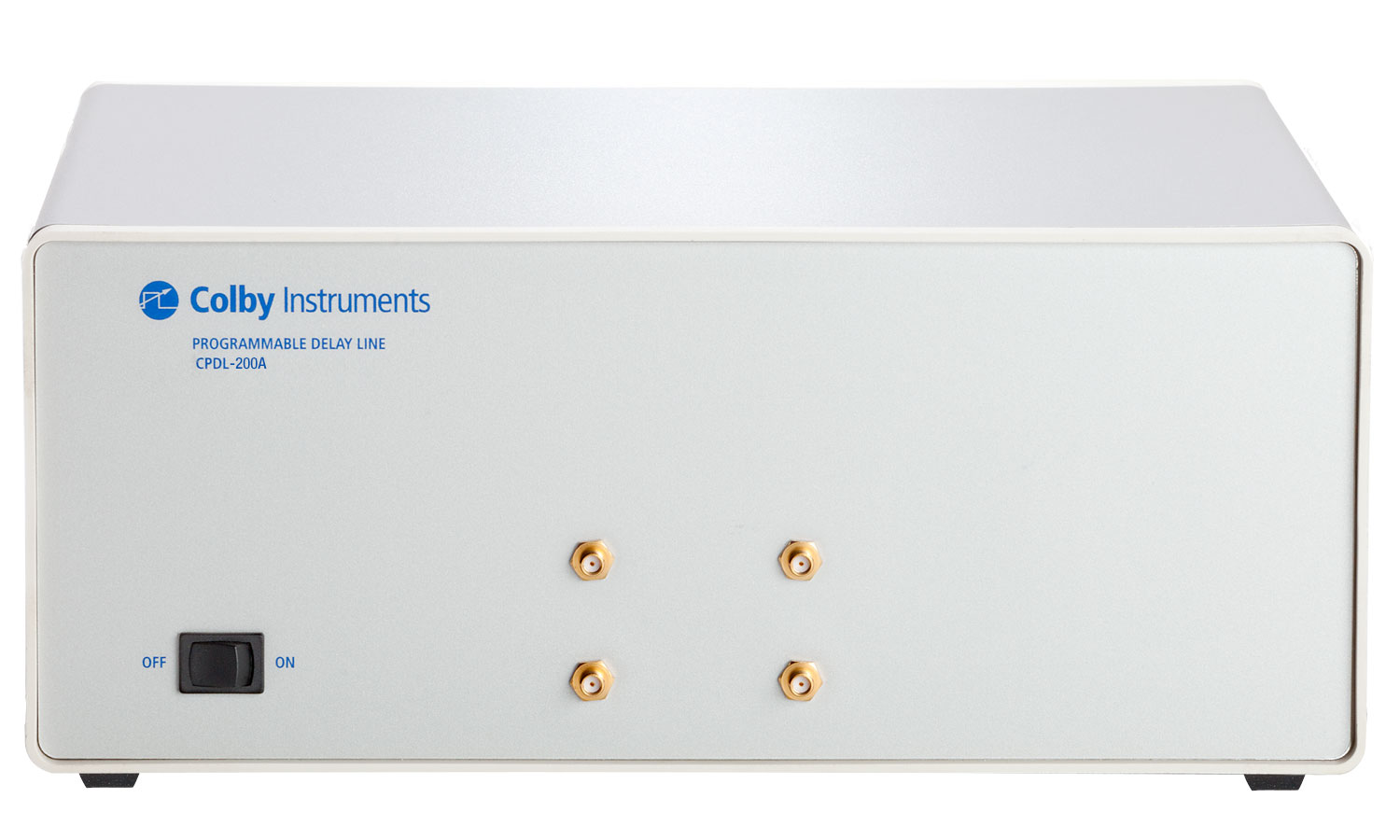

CPDL-200A

Highest performance precision with extended range.

The CPDL-200A extends the range of a dual channel PDL-200A to 1.25 ns of total delay in each channel of a dual channel configured instrument. This model offers the highest performance precision combined with extended range and the lowest signal insertion loss possible in any of our units.

PDL-200A - 625 psPDL-200A - 1.25 nsCPDL-200A - 1.25 ns
Dual ChannelSingle ChannelDual Channel
625 ps (each channel)1.25 ns (one channel)1.25 ns (one channel)
Trombones operate in parallel and independentlyTrombone placed in-series and operates as one unit with total extended range to 1.25 nsTrombones operate in parallel and independently with extended range

CPDL-200A Specifications



Options

MT-100A MICROTERMINAL

MT-100A provides convenient LCD display and numeric keypad entry for manual control of desired delay.


RMO-1 19" RACKMOUNT KIT

RMO-1 rack mount kit option to mount delay line instrument chassis into a standard 19" rack.


Resources


Related Products

  • CPDL-100A - both range and step size can be custom or specified by customer.
