XT-100

Our most versatile product with a single input channel and a customizable delay range

Recommended if you need a finer step resolution and broad selection of delay ranges

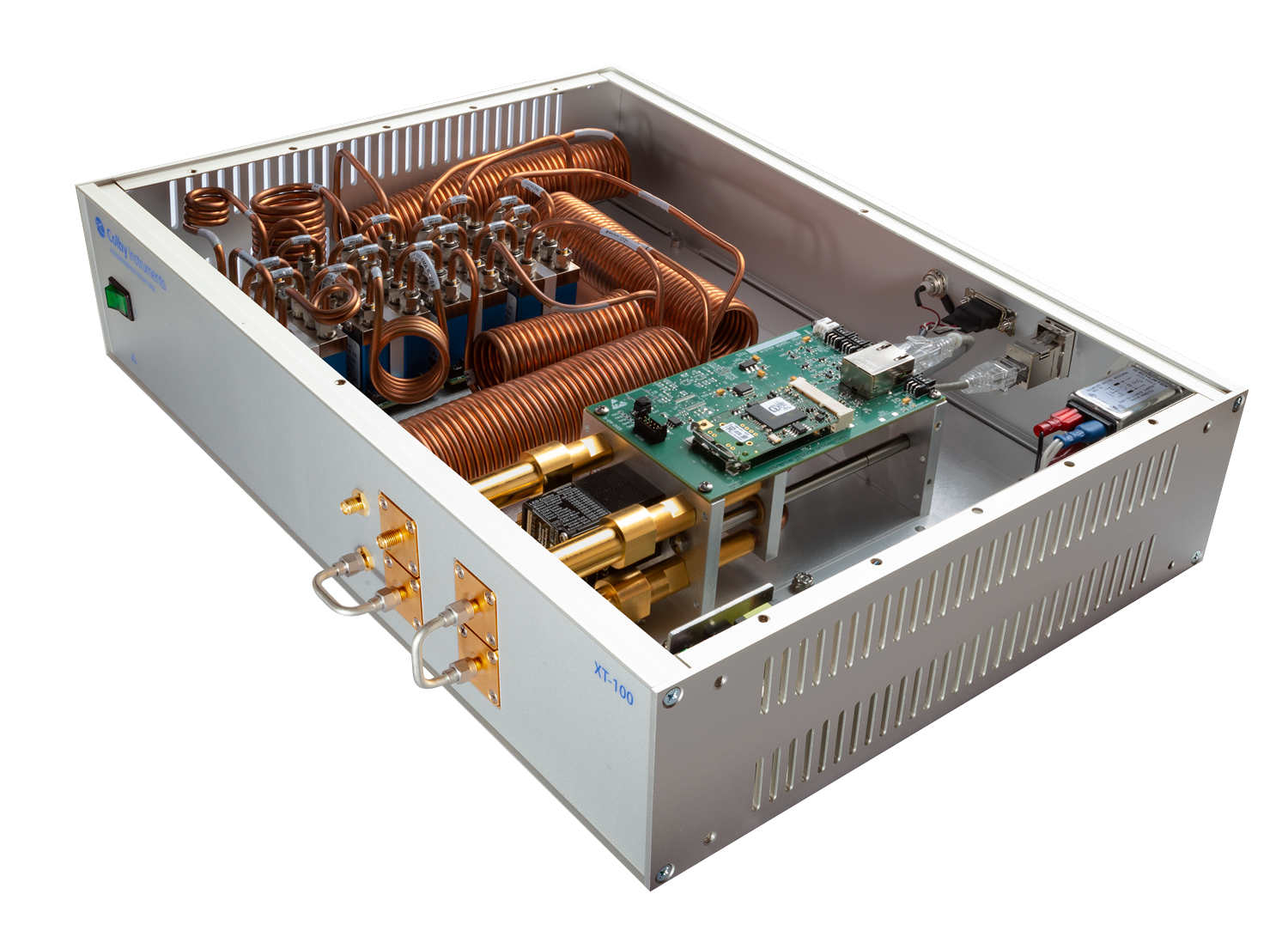

XT-100 Overview

The XT-100 features Colby‘s patented trombone technology for unmatched precision and ease of use. Using delay extensions, the XT-100 also comes in a number of configurations that give you the range you need, up to 100 ns.

Programmable Delay Line Instrument is designed to handle a high frequency/RF electronic signal, ranging from DC up to 18 GHz, and adjust the overall distance that the signal traverses. Altering this signal path length directly influences the resulting phase shift and complete travel time, as measured by comparing the signal's entry and exit points.  We offer this capability in an instrument that accepts a time delay value in the form of commands and queries over a programmable interface.

Programmable delay (or phase shift) is provided through our patented electromechanical trombone with precision cut semi-rigid coaxial cable and aerospace grade microwave relays.  We offer accuracy and precision with excellent repeatability.

Colby’s patented trombone technology. Trombone mean step accuracy better than 0.05% σ = 0.05 ps

Single channel offers 0-625 ps of total delay.

web browser interface for remote instrument control

Doppler shift and/or oscillate between two end points at variable rates of speed

An oscillation effect can be applied in the signal path from the increase and decrease of the path length that is continuously varied (cycled) between two endpoints.  Displacement (amplitude) and period define an oscillation.

Full wideband passive delay from DC to 18 GHz

500,000 operations before recommended maintenance service

Additional configurations with delay extensions offer total delay up to 2.5 ns, 5.0 ns, 10 ns, 20 ns, 50 ns, 80 ns, 100 ns, or 200 ns.

XT-100 Technical Specs

XT-100
Technology TypeTrombone, Trombone + Relays
# of Channels1
Signal Input Range0 - 18.0 GHz
Min. Step Resolution0.25 ps
Max Delay Range625 ps, 2.50 ns, 5.00 ns, 10.0 ns, 20.0 ns, 50.0 ns, 80.0 ns, 100.0 ns
Phase Shift Step Resolution0.18 ° per 1 GHz
Total Phase Shift at 1 GHz225°, 900°, 1800°, 3600°, 7200°, 18000°, 28800°, 36000°
Total Phase Shift at 5 GHz1125°,4500°, 9000°, 18000°, 36000°, 90000°, 144000°, 180000°
Switching Speed*250 ms - 6500 ms
Ext. Triggerno
Ethernet TCP/IPyes
Serial RS-232yes
MT-100Aoptional
Web Browser UIyes
Microwave Relays Rated5m MTBF
Recommended Service Interval500,000 operations or 1 year
Min. frequency for 360° phase shift coverage1.6 GHz, 400 MHz, 200 MHz, 100 MHz, 50 MHz, 20 MHz, 12.5 MHz, 10 MHZ
Dimensions12" L x 16 3/4" W x 3 1/2" H (2U)
Weight4.1 kg (9.0 lbs.) to 5.0 kg (11 lbs.)

*depending on network latency

XT Series popular configurations

XT-100-625P

The XT-100-625P is a single channel instrument with a total delay range from 0 to 625 ps and step resolution to 0.50 ps per step.

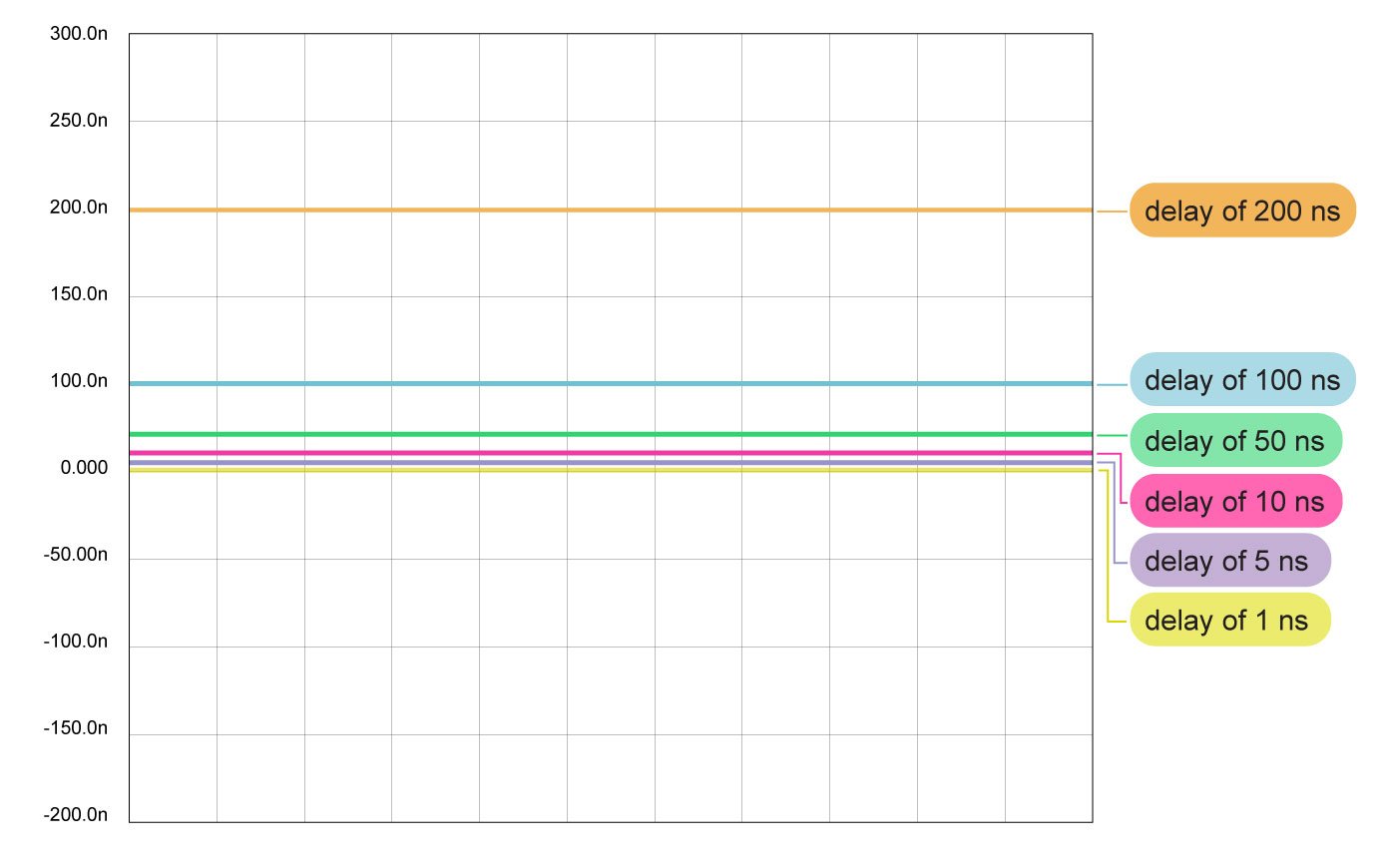

XT-100-00XN+

We can also provide total extended range beyond 625 ps all the way out to 200.0 ns is a series of models:

XT-100-001N (to 1.25 ns range) up to XT-100-200N (200 ns range)

OTHER configurations?

Informations about this configurations that is helpful.

Optional Add On


MT-100A MICROTERMINAL
MT-100A provides convenient LCD display and numeric keypad entry for manual control of desired delay.
